CHENTA is your best partner in gearing resolutions.

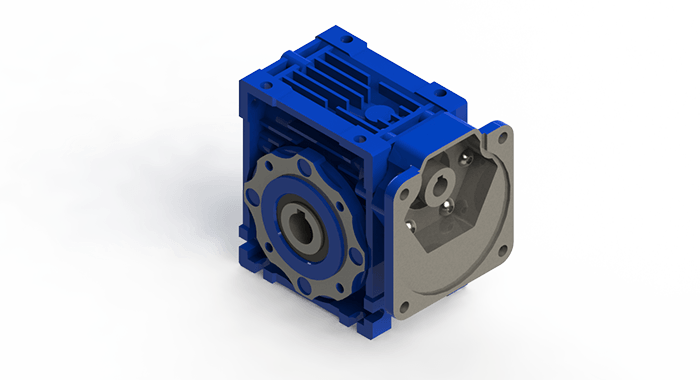

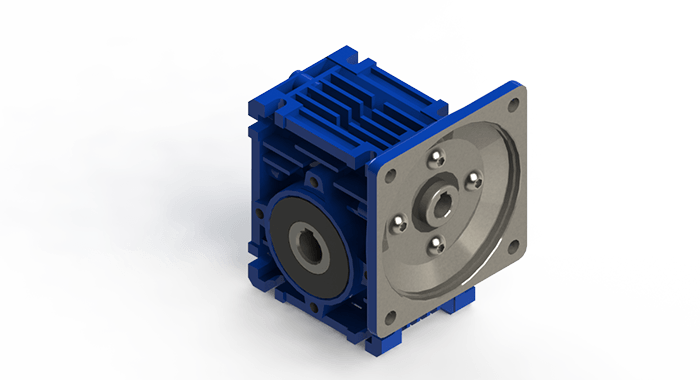

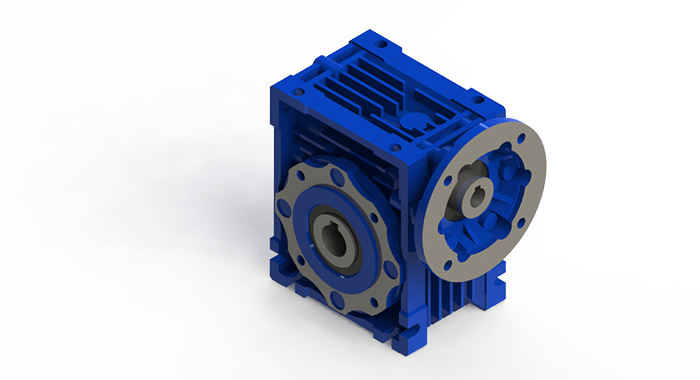

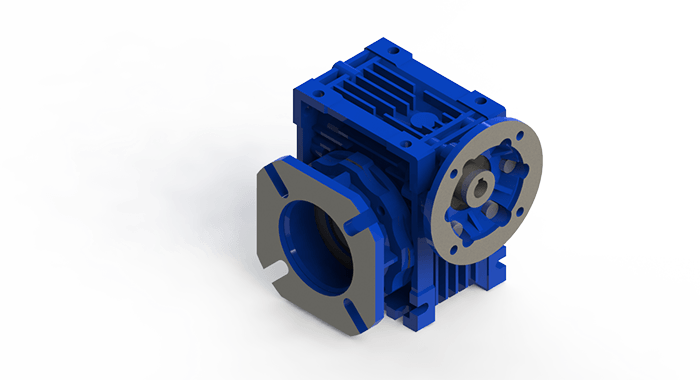

Aluminum Worm Gear Reducer (H series)

hsm-1
FEATURES
  1. High accuracy.
  2. Enlarged facial area for a better heat radiating and durability promoting.
  3. Light duty and compact design.
  4. Less expenses on maintaining.
  5. Oil change is an optional.
  6. Capability of back-drivable.
  7. Higher strength design on hollow output shaft.
  8. Enhanced input shaft made of Cr-Mo alloy steel under carburized heat treatment.
  9. Numerous accessories with a wider collocation.
  10. Transmission of power with minimized vibration and noise level.
  11. Aluminum alloy casting for size #30-#90 and cast-iron casting for size #110-#150.
  12. General design on dimensions for a higher compatibility.
  13. Extensive applicability.
  14. Available for universal mounting positions.
  15. Rusting free from powder coating casting parts.
Size Output-Shaft [mm] M2 [Nm] Max I - Min I - Max
30 14 21 5.00 80.00
40 18 46 5.00 100.00
50 25 84 5.00 100.00
63 25 152 5.00 100.00
75 28 229 7.50 100.00
90 35 410 7.50 100.00
110 42 689 7.50 100.00
130 45 998 7.50 100.00
150 50 1473 7.50 100.00
